The rational use of daylight can significantly reduce the cost of electricity for artificial lighting. This research aims at investigating the parameters of translucent structures of building envelope, and the value of daylight factor, for which maximum efficiency of daylight usage is achieved in office rooms. The study analyzes the dependence duration of daylight autonomy in office rooms, on the value of daylight factor for four European cities. The specific daylight autonomy (h/(year∙m^{2})) of office rooms were found. It was proved, that regardless the size of the rooms, the maximum specific daylight autonomy in Ternopil city (at illumination of 300 lx, which is prescribed by regulations), with lateral daylight, occurs when the daylight factor is in the range of 1.7% to 1.9%. Maxima – at 1.8%. At illumination of 500 lx, the maximum specific daylight autonomy will occur at a daylight factor range of 2.6% to 3.0%. Maxima – at 2.8%.
Daylight factor, Daylight autonomy, Specific daylight autonomy, Office rooms daylighting
Abbreviations
DA | Daylight autonomy, h/year |
DA_{300} | Daylight autonomy with prescribed by regulations illumination in 300 lx, h/year |
DA_{con} | Ratio between the illuminance determined only by daylight on a point and the minimum daylight illuminance required on the workplane required by the standards; |
DA_{max} | Annual percentage of time during which a maximum illuminance level is trespassed and over which visual discomfort may occur |
DF | Daylight factor, % |
d_{RP, lRP} | Coordinates of the RP location in the room, m |
E | Average monthly horizontal illumination, klx |
da_{TSBE} | Specific daylight autonomy efficiency of the TSBE area using, h/(year×m^{2}) |
h_{GL} | Glazing height, m |
h_{TSBE} | TSBE height, m |
i_{C.TSBE} | TSBE coordination index, rel. un |
I_{GL.R} | Composite room glazing index, % |
l | TSBE opaque part width, m |
l_{F.F} | Foam filling width, m |
l_{GL} | Glazing width, m |
l_{PROF} | Profile width, m |
l_{TSBE} | TSBE width, m |
S_{GL} | TSBE glazing area, m^{2} |
S_{TSBE} | Area of TSBE, m^{2} |
S_{WS} | Working surface area, m^{2} |
WFR | Window to floor ratio, % |
WWR | Window to wall ratio, % |
ɛ_{GL} | Glazing solar radiations relative penetration coefficient |
BE | building envelope |
CRGI | Composite room glazing index |
EDR | Energy daylight rate |
LF | Light factor |
RP | Reference point |
SRRPC | Solar radiations relative penetration coefficient |
TSBE | Translucent structures of building envelope |
WS | Working surface |
Presently, in solving the problem of office rooms lighting, attention is focused on the use of artificial light sources. According to the IEA’s data, artificial light consumes about 2650 TWh·h electricity per year (≈19% of world electricity production), exceeding the total amount of electricity produced by all nuclear power plants in the world [1]. In Ukraine, artificial lighting accounts for about 16% of total electricity consumed in the country. These indicate that the lighting system is a significant consumer of electricity, especially in office rooms (up to 80%).
The use of daylight to illuminate office rooms is one of the most obvious ways to save energy. According to International Labour Organization (ILO), complete absence of daylight in workplace is hazardous. Man is biologically adapted to daylight. Its optimal use can significantly reduce the cost of electricity for artificial lighting. For this reason, it is necessary to choose the right size and thermal characteristics of translucent structures of building envelope (TSBE). Until recent advancement in daylight technology, TSBE was the weakest link in the building envelope (BE) of office rooms.
In a world currently concerned about global warming, carbon emission, sustainable design and capital costs for industrial construction, irrational design of buildings lighting system, can cause discomfort and enormous heat loss, which are no longer acceptable. Therefore, it’s necessary to strive for the maximum use of daylight.
The economic benefits of daylight are often considered in terms of energy saving, without taking into account the effort of labour and productivity, which can be more significant than energy saving [2]. Investment in lighting modernization, heating and cooling systems can easily be done by increasing labour and productivity.
Such studies were carried out by S. Samoilov and A. Soloviov [3], V. Bartenbach [4], J. Koso [5], Yu. Tabunshchikov [6], E. Neuert [7], A. Korkina [8] and others, in respect to daylight modernization.
The research [8], conducted by A. Korkina, that analysis the design and size of TSBE effect on solar radiations relative penetration coefficient (SRRPC), was a huge breakthrough. The energy efficiency of combined lighting was taking into account; the energy balance of the premises was considered by T. G. Korzhneva in [9]. A study of the impact of various types, sizes and locations of TSBE on lighting of office rooms was carried out in [10] by H. Altan and J. Mohelnikova. The results of the study indicate that not only the size and type of TSBE are important, but also their location in the BE.
Dynamic daylight simulation is very useful instrument in daylighting design process. It allows thorough analyzing of indoor daylight availability level and defining if they are adequate to perform a particular visual task. Their results can be used to design shading devices or lighting control systems and to compare different technical solutions. The use of simulation is widely spread in the common design practice, since some regulations and green building rating systems suggest their use. Paper [11] presents dynamic daylight simulation result related to an open-plan office. The study shows the functionality of this software in dynamic daylight simulation field and proposes a methodology on how it should be used. Study [12] demonstrated that evaluating energy costs with different software can vary the results up to 15%. Differences in results depend on the definition of indoor daylight availability, it also depend on the control systems' modeling that neglect important factors, such as the specific characteri stics of photosensors, luminaires or drivers [13-16]. Even though these calculation techniques are very useful in the entire design process, experimentations are necessary to improve software performance in order to make calculation models more similar to realistic conditions.
The study [17] showed that the implementation of the new requirements of the EN-17037 standard is important, since it addresses daylighting concerns. The authors focus on the need to use software modeling, which allows one to calculate the criteria’s presented in this research. Also, in this article, we compared the required standards with practical tasks, which arise during the construction process. I.e. In practice, there were fears that only rooms located in a very open environment (upper floors) can be well evaluated.
Due to the fact that the theoretical combination of the characteristics of natural and artificial lighting is problematic (this is because various software packages are required to perform detailed calculations) [18,19], the authors proposed a new parameter, the Energy Daylight Rate (EDR), which allows optimizing the design of the BE at the early stage of room designing.
Studies [20-22] examined ways to increase the energy efficiency of artificial lighting systems in administrative buildings. The study [20] showed the need to optimize artificial lighting systems for office buildings due to their significant consumption of artificial lighting. In [21], the feasibility of introducing an artificial lighting control system was considered. Arguments are also given in [22], regarding the appropriateness of using combined lighting systems. In general, these studies indicate the need for the introduction of daylighting systems in administrative premises to ensure maximum energy efficiency of artificial lighting systems of the building.
Due to the fact that the intensity of solar radiation input depends on climatic conditions, a methodology was developed that focused on the use of climatic data for the construction of climatology in the calculations [23] by O. V. Serheichuk. The methodology determines the effect of shading devices, used on the flow of solar radiation through TSBE.
A study [24] reviews the comprehensive calculation method for lighting energy requirement in non-residential buildings, introduced by the European Standard EN 15193: 2007 and investigates its feasibility in China. The location of office rooms influences the intensity and duration of daylight. In EN 15193 calculation method, the daylight supply factor, which represents the effect of daylighting on artificial lighting usage, is the only factor related to location and is calculated according to the latitude, however the current method (EN15193: 2007) limits the latitude range from 38° to 60° north in Europe, for which the relationship between daylight supply factor and latitude is approximately linear. The study [24] shows that a quadratic relationship needs to be used for a wider range of latitudes. The coefficients of the proposed quadratic relationship are determined for classified daylight penetration and maintained illuminance level. Various control types are also considered.
Papers [25,26] proposes a concept for a new daylighting analysis framework for residential architecture. It consists of two sub-metrics that capture diurnal and seasonal daylight availability, as well as the average duration of access to direct light. It is shown that through the use of the proposed framework, significant and actionable qualitative differences between apartment units can be identified, that would otherwise remain unnoticed during the design and evaluation process. The framework also provides several levels of details, which ranges from a simple score to spatial plots that allow modelers to understand and optimize the daylighting characteristics of a room, apartment building or neighborhood.
The annual energy consumption of an office building depends on the various types of TSBE in the climatic zone, with hot summer and cold winter presented [27]. The authors developed a calculation model for the office rooms, and carried out a series of simulations on the energy consumption of the building when changing TSBE parameters. It was found that when using both single glazing and a two-pane double-glazed window made of ordinary glass and those painted green, the most energy-efficient rooms are achieved with a window to wall ratio (WWR) close to 20%.
In the study [28], the relationship between the attributes of the building structure and the existing parameters of daylighting measuring was studied based on the new methodology. This methodology includes a statistical study. It helps analyze a large amount of input data and the impact of a large number of design changes. In particular, this statistical methodology can be used to analyze which parameters are important and which are not, as well as the type of dependencies on each other. Using these methods, statistical models can be created to predict the values of the daylighting metric for various types of buildings and design decisions. This article describes the principle of operation of this methodology and analyzes the structural features of the building, which have the greatest impact on the efficiency of daylighting.
The review [29] reveals that energy intensity of around 10 kWh/(m^{2}·yr) is a realistic target for office electric lighting, for future low energy office buildings. This target would yield a significant reduction in energy intensity of at least 50%, compared to the actual average electricity use for lighting (21 kWh/(m^{2}·yr) in Sweden). Strategies for reducing energy use for artificial lighting are presented and discussed, which includes: improvements in lamp, ballast and luminaire technology, use of task/ambient lighting, improvement in maintenance and utilization factor, reduction of maintained illuminance levels and total switch-on time, use of manual dimming and switch-off occupancy sensors. Strategies based on daylight harvesting are also presented and the relevant design aspects such as effects of window characteristics, properties of shading devices, reflectance of inner surfaces, ceiling and partition height are discussed. The study indicates the need to optimize the parameters of artificial lighting to reduce the load on the energy system that is constantly growing.
Paper [30] presents a literature review about energy-efficient retrofit of electric lighting and daylighting systems in buildings. The review, which covers around 160 research articles, addresses the following themes: a) retrofitting electric lighting in buildings, b) electric lighting energy use and saving potential and c) lighting retrofit strategies. The retrofit strategies covered in the review are: replacement of lamp, ballast or luminaire; use of task-ambient lighting design; improvement in maintenance; reduction of maintained illuminance levels; improvement in spectral quality of light sources; improvement in occupant behavior; use of control systems; and use of daylighting systems. The review indicates that existing general knowledge about lighting retrofit is currently very limited and that there is a significant lack of information concerning the actual energy performance of lighting systems installed in the existing building stock.
Despite a significant amount of research in the field of daylighting, issues of TSBE design, determining the daylight factor (DF) value, at which the maximum use of daylight will be ensured, is not sufficiently disclosed. This indicates the relevance of conducting this research, aimed at developing recommendations for improving the energy efficiency of office rooms, not only by increasing the thermal resistance of BE, but also by making more efficient use of daylight for their lighting. That is why the purpose of this study was to determine the parameters of TSBE and to establish the DF value at which the maximum efficiency of daylight usage in office rooms of various sizes is ensured.
Artificial lighting is much lower than daylight, even in the overcast sky conditions. I.e., the level of horizontal room’s illumination without daylight is 100-500 lx and 1000 to 2000 lx or more with daylight. On a clear sunny day under the open sky condition, this figure may rise up to 100,000 lx.
The effectiveness of daylight usage is determined by rational design solutions, when introducing daylight in an office rooms, the intensity and spectral composition of sunlight must be taken into consideration. The first step in solving this problem is to determine the relationship between daylight autonomy (DA) and DF value, at a reference point (RP) on a working surface (WS) for the office room (Fig. 1).

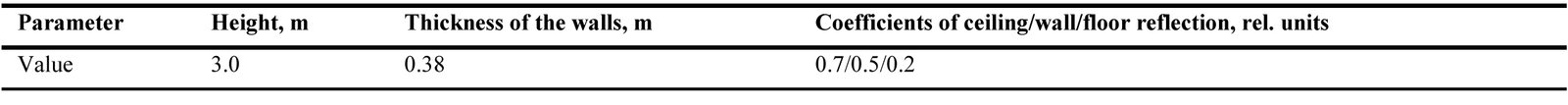

Calculations were carried out for room parameters, which are in confirmatory with current requirements of regulatory documents [32-37]. According to their data, the room height, the thickness of its walls and the reflection coefficients of the internal surfaces of the building envelope were selected and presented in (Table 1).
The concept of DA was introduced for the first time in CIE Daylight Technical Report [38]. It was proposed again in 2001 by Reinhart and Walkenhorst, as the annual percentage of the occupied time of a space during which the minimum illuminance prescribed by regulation is achieved [39]. In 2006, Rogers extended the DA and introduced the DA_{con }[40]. It is calculated as the ratio between the illuminance determined, only by daylight on an RP and the minimum illuminance required, on WS standard. For example, if an illuminance equal 400 lx is registered and the minimum illuminance on WS is equal 500 lx, DA_{con} will be 0.8 (400/500).
The DA_{max} was introduced by Rogers himself in 2006, to consider discomfort risks depending on excessive light levels [40]. The DA_{max} can be defined as the annual percentage of time during which a maximum illuminance level is trespassed, which may lead to visual discomfort. This limit is set at 10 times the minimum illuminance on WS. I.e., if the law establishes 150 lx on WS, this limit will be equal to 1500 lx.

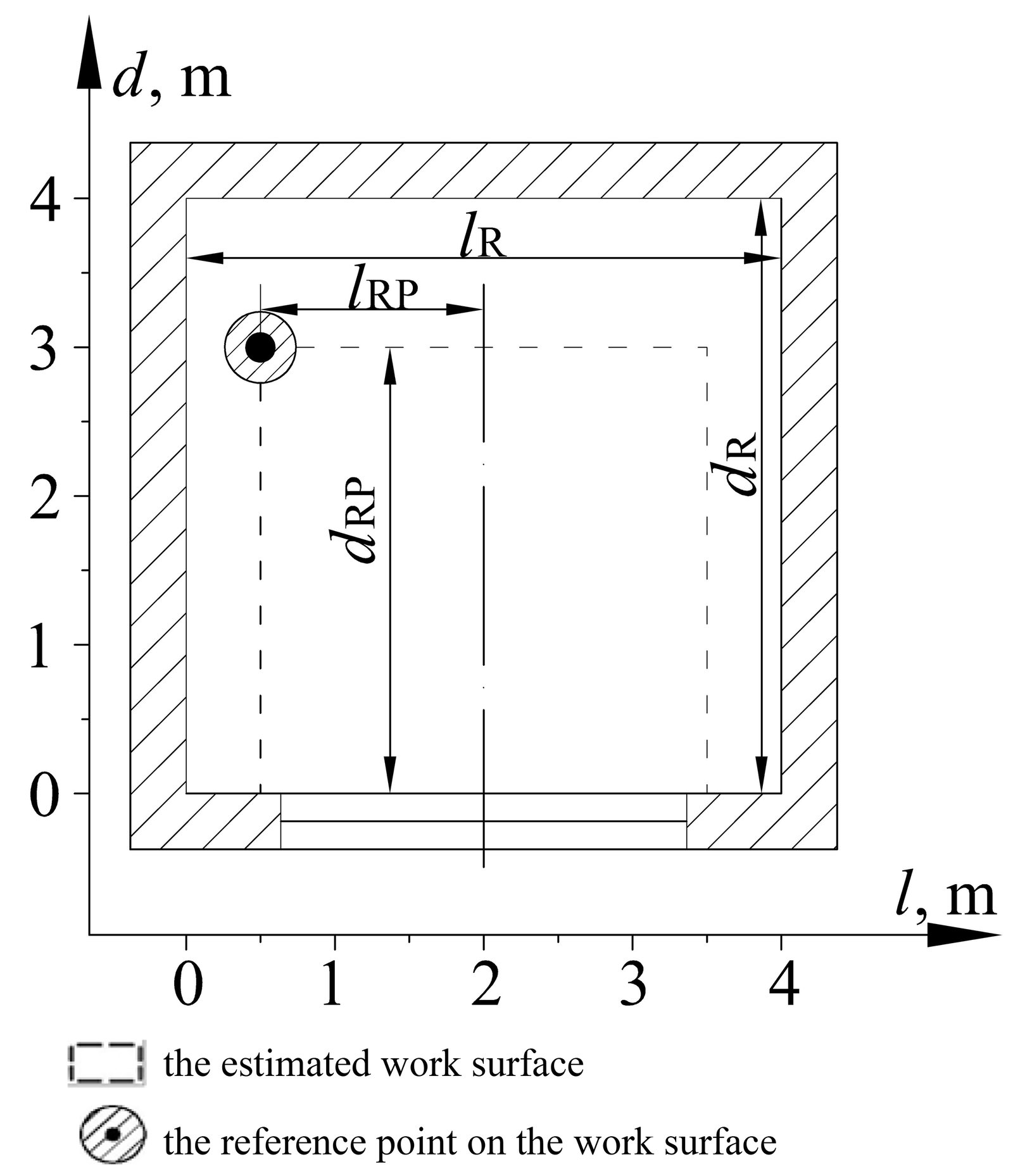

Let us determine the dependence of DA in office rooms on DF value at RP for Ternopil city, Ukraine. The problem was solved using the software Relux (v. 2020.1.3.0) [41]. The reliability of the results of this software package was tested in [42-44].
Since the standard CIE overcast sky conditions were used in the DA calculation in the Relux program, and the calculation was made only for the diffused light, we assume that the TSBE in this study oriented to the north. In this study minimum daylight autonomy values were used.

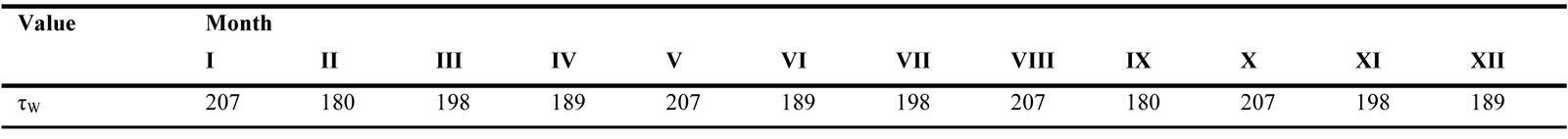

For calculations, we adapted 9 hours working day (from 9:00 am to 6:00 pm). In accordance with [32,45], minimum illumination prescribed by regulations for office rooms is 300 lx (DA_{300}). By setting the total duration of work for a month, it is possible to determine the dependence of DA_{300} on DF value. The data of monthly working hours, which were used for calculations in the Relux, are given in Table 2.
Due to the fact that DF value does not allow us to determine the size of the room or the area of TSBE, it is advisable to replace it with the composite room glazing index (CRGI) [31]. This was given in Eq. (1).
where 1.1 is the the safety factor [31];
However, when determining the CRGI [31], the influence of the SRRPC (ɛ_{GL}) on the DF value was not taken into account. In the study [31], its value was taken as ɛ_{GL} = 0.8. According to [32], the DF value is directly proportional to the light transmittance. Therefore, to take it into account, Eq. (1) must be multiplied by 0.8/ɛ_{GL}. Then Eq. (1) will take the form Eq. (2).
Based on these data, as well as with the dependence of CRGI on DF value in Eq. (2), it is possible to determine the required glazing area of TSBE by the Eq. (3) [31].
where S_{GL} is the TSBE glazing area, m^{2} [46], S_{WS} is the working surface area (S_{WS} = 2 ‧ l_{RP} ‧ d_{RP}‧), m^{2}, and d_{RP} and l_{RP} are the coordinates of the RP location in the room (Fig. 1), m.
According to the regulatory document [32], which is harmonized with European standard [45], lateral daylighting is prescribed by regulations to the minimum DF value. Therefore, RP determination is selected at the farthest point on the WS, which is located at a distance of 1 m from the wall opposite TSBE and 0.5 m from the side BE.
A metal-plastic window with a Veka Softline 82 profile and a double-glazed window 4Solar-16Ar-4-12Ar-4 with thermal resistance 1 (m^{2}×°C)/Wh and SRRPC 0.68 rel. un was used as the TSBE. (Fig. 2).
Figure 2

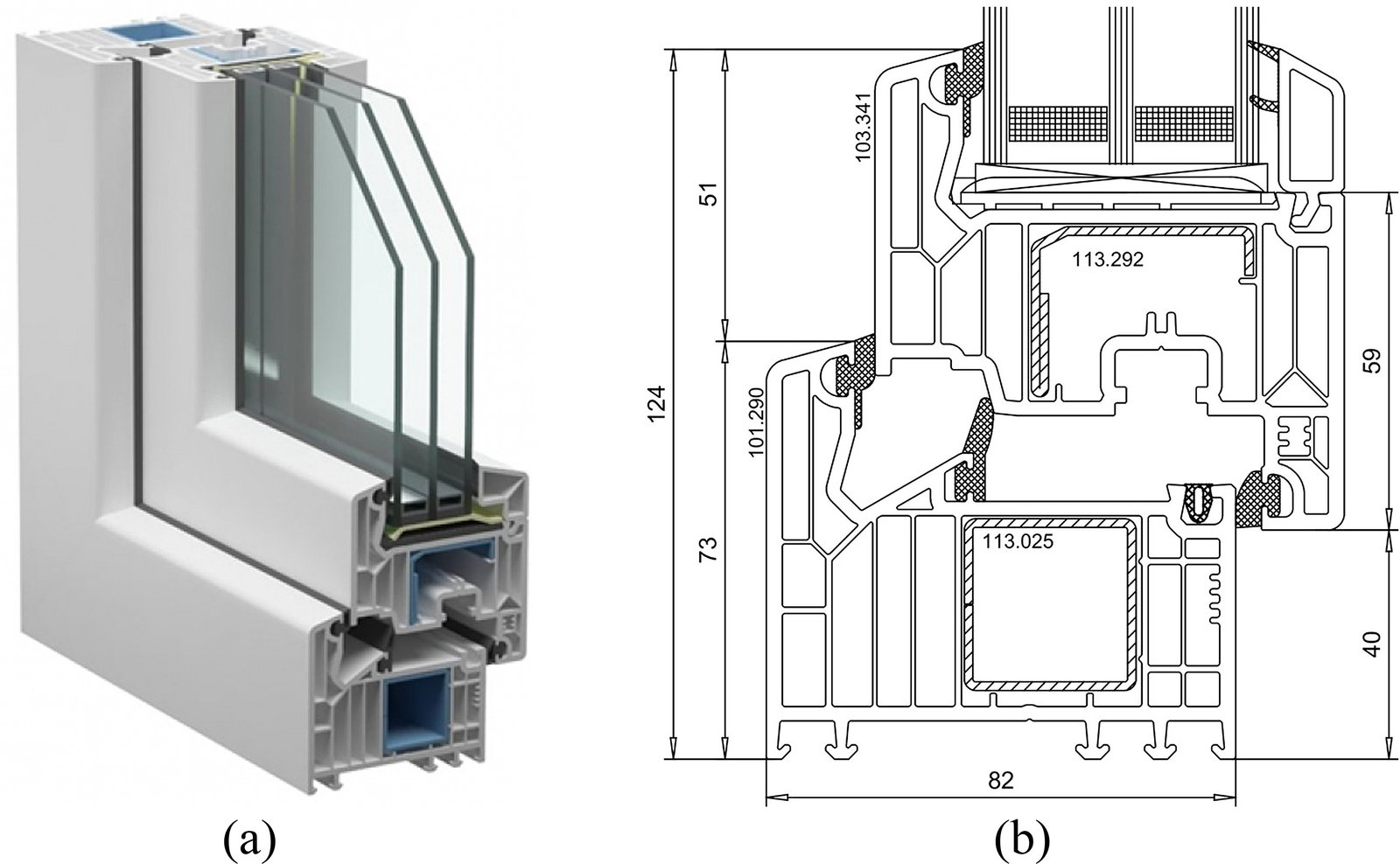

Fig. 2. (a) The appearance and (b) dimensions of the profile Veka Softline 82 with double-glazed window 4Solar-16Ar-4-12Ar-4i [47].
Based on the obtained CRGI value, it is possible to determine the minimum TSBE glazing area, which provide prescribed regulation illuminance at the RP of the WS by using the Eq. (4) [31].
Next, according to the algorithm [31], it is necessary to set the TSBE coordination index (i_{C.TSBE}), the proportions of TSBE affect the value of DF in RP [48]. TSBE glazing dimensions are determined using the Eq. (5) and Eq. (6)
where i_{C.TSBE} is the TSBE coordination index;
To determine TSBE area, it is necessary we obtained the data on its width of the profile and foam filling. For this reason, it is necessary to determine the height and width of TSBE. Based on the size of the glazing and the thickness of the profile, they can be determined by the Eq. (7) and Eq. (8)
where l_{PROF} – profile width, m [47]_{;}
The foam filling width is determined from [46], by the Eq. (9)
The TSBE area is determined by the Eq. (10) [31].
where l – TSBE opaque part width [46], m;
The TSBE opaque part width is determined by the Eq. (11) [46].
The calculations were carried out according to the algorithm shown in the flow chart (Fig. 3).
Figure 3

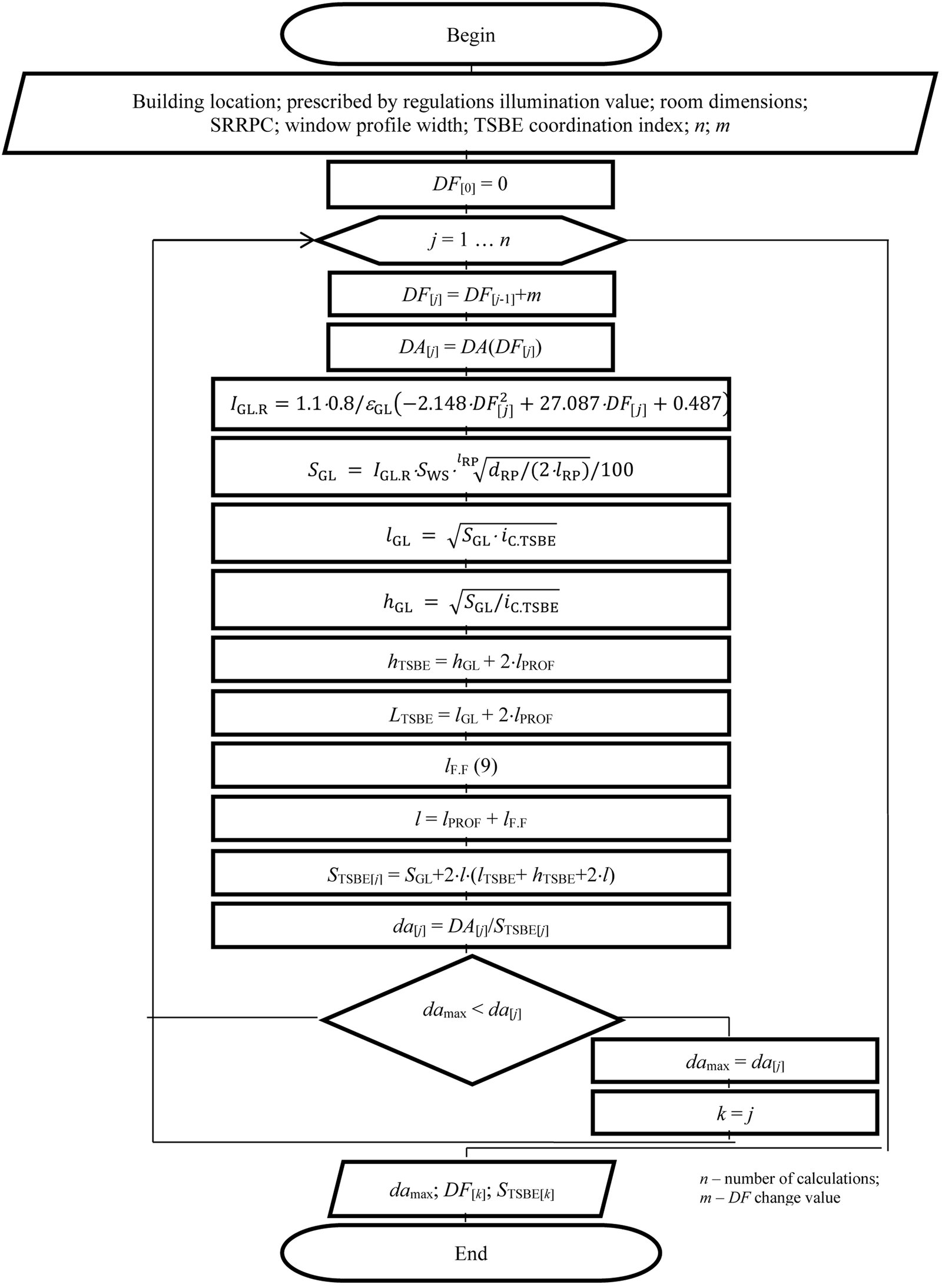

Fig. 3. The flow chart of the DF value calculation, at which the maximum DA value is achieved.
In Eastern European countries, such as Ukraine, Belarus, Russia etc., to compare the energy efficiency of TSBE, the light factor (LF) is used, which is named window-to-floor ratio (WFR) in other countries and defined as the ratio of TSBE area to the floor area of the room (S_{R}), which is given in Table 3.
Table 3

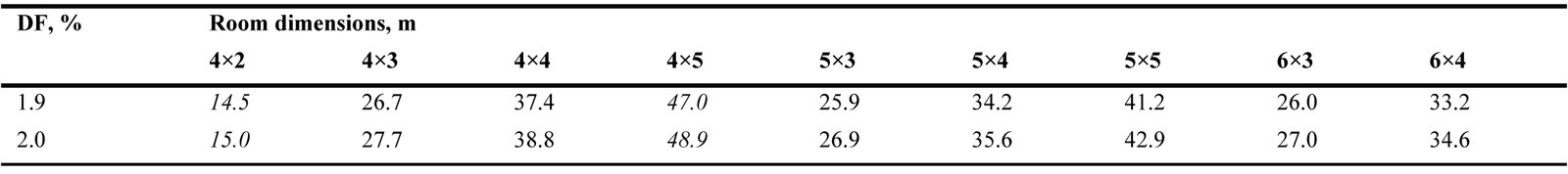

Table 3. WFR value, at which the required DF value will be provided for rooms of various sizes, %.
As can be seen from the Table 4, the WFR value, at which DF value of 1.9% and 2% are ensured for the rooms examined, varies from 14.5% to 47.0% in the first case and from 15% to 48.9% in the second. That depends on the size of the room, the WFR value may differ by 3.24-3.26 times. From which we can conclude the inadmissibility of using WFR to assess the daylighting of rooms. In studies [3,16,27,49-57], WWR was used to summarize the results, that is, the ratio of the TSBE area (S_{TSBE}) to the internal area of the TSBE in the BE in which it is installed. The height of the investigated room is 3 m.
Table 4
Table 4. WWR value, at which the required DF value will be provided for rooms of various sizes, %.
As can be seen from the Table 4, depending on the size of the room, the WWR value, at which DF value of 1.9% and 2.0% are achieved, varies from 9.6% to 78.3% in the first case and from 10.0 to 81.5% in the second. That is, for a room with dimensions (width × depth × height): 4×2×3 m, the WWR value will be 8.15 times less than room with dimensions 4 × 5 × 3 m. This indicates the inadmissibility of using this indicator in the study of energy efficiency using natural lighting. As we can see, the use of both WFR and WWR to evaluate the efficiency of using natural light is unacceptable.
In order to determine the error, it is observed when using CRGI, we determine the DF value at the RP, at which will be provided in the rooms under consideration with the TSBE area indicated in Table 5.
Table 5

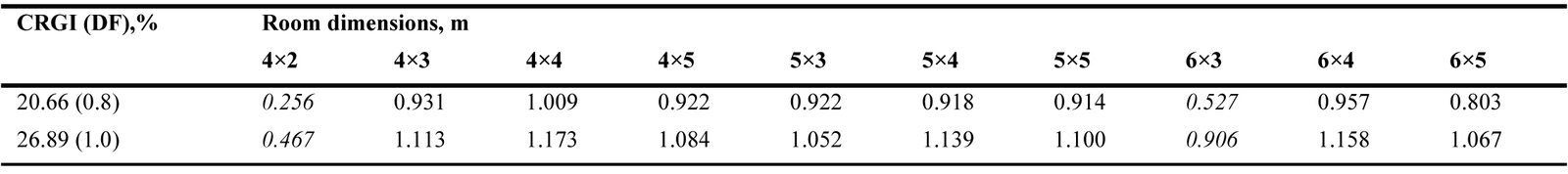

Table 5. The results of the DF value calculation for the investigated room of various sizes, in the deposits from the CRGI, %.
The calculations were carried out in the Relux program according to the global illumination algorithm (Radiosity). The error did not exceed 7% [58]. According to [59], the calculation error in the Relux program does not exceed 10%. This is quite enough for various kinds of lighting calculations.
The methodology for calculating DF at RP is given [31]. The pollution and absorption coefficients of TSBE are taken to equal 0.9. The results of DF value at RP calculation, which will be achieved when establishing the TSBE area, is shown in Table 2, and are given in Table 5. Analysis of the Table 5 data showed that for DF values of 1.9% and 2.0%, in rooms with dimensions of 4×5; 5×5, and 6×5, the TSBE area equal 9.78 m^{2}, 10.72 m^{2} and 12.19 m^{2}, respectively. Since the height of the premises is assumed to be 3 m, and according to expression (5), for these cases it will be 3.13 m, 3.27 m and 3.49 m, their height exceeds the height of the room. So the calculation of the DF value deviation from its set value, we use DF value of 0.8% (I_{GL.R} = 20.66) and 1% (I_{GL.R} = 26.89).
As can be seen from the Table 5, for rooms of different sizes, with the same value of CRGI, the deviations of the DF value do not exceed 26.1% ((0,8-1,009)/0,8×100), except when the width of the room is twice the depth (l_{R} ≥ 2 ∙ d_{R}). Such a large error is explained by the fact that to compensate for the non-synchronization of DF changes from TSBE proportions for rooms of any sizes, the safety factor is used, which leads to an overestimation of DF values over the prescribed by regulations [31].
While WFR and WWR, depending on the size of the room, can differ several times, the use of the CRGI allows you to develop common criteria for assessing the effectiveness of daylighting. Therefore, to solve this problem, we propose the use of a CRGI, since it takes into account the size of the room.
To establish the optimal parameters of the TSBE, in future studies it is necessary to consider the effect of TSBE on the energy balance of the room, taking into account not only energy savings through the use of daylight but also the increase in heat loss due to heat transfer and heat from solar radiation during the heating period, as well as heat transfer during the cooling period that is partially reviewed [60].
Since the prescribed regulations illuminance of office rooms should be 300 lx, knowing the monthly duration of work, we can determine the dependence of DA_{300} on DF value. In Fig. 4, graphs are shown of DA_{300} dependence on DF value during the year for the cities of Ternopil (49° 34' N. 25° 36' east), Kyiv (50° 27' N. 30° 31' E), Paris (48° 51' N. 2° 21 'E) and Berlin (52° 31' N, 13° 24' E).
Figure 4

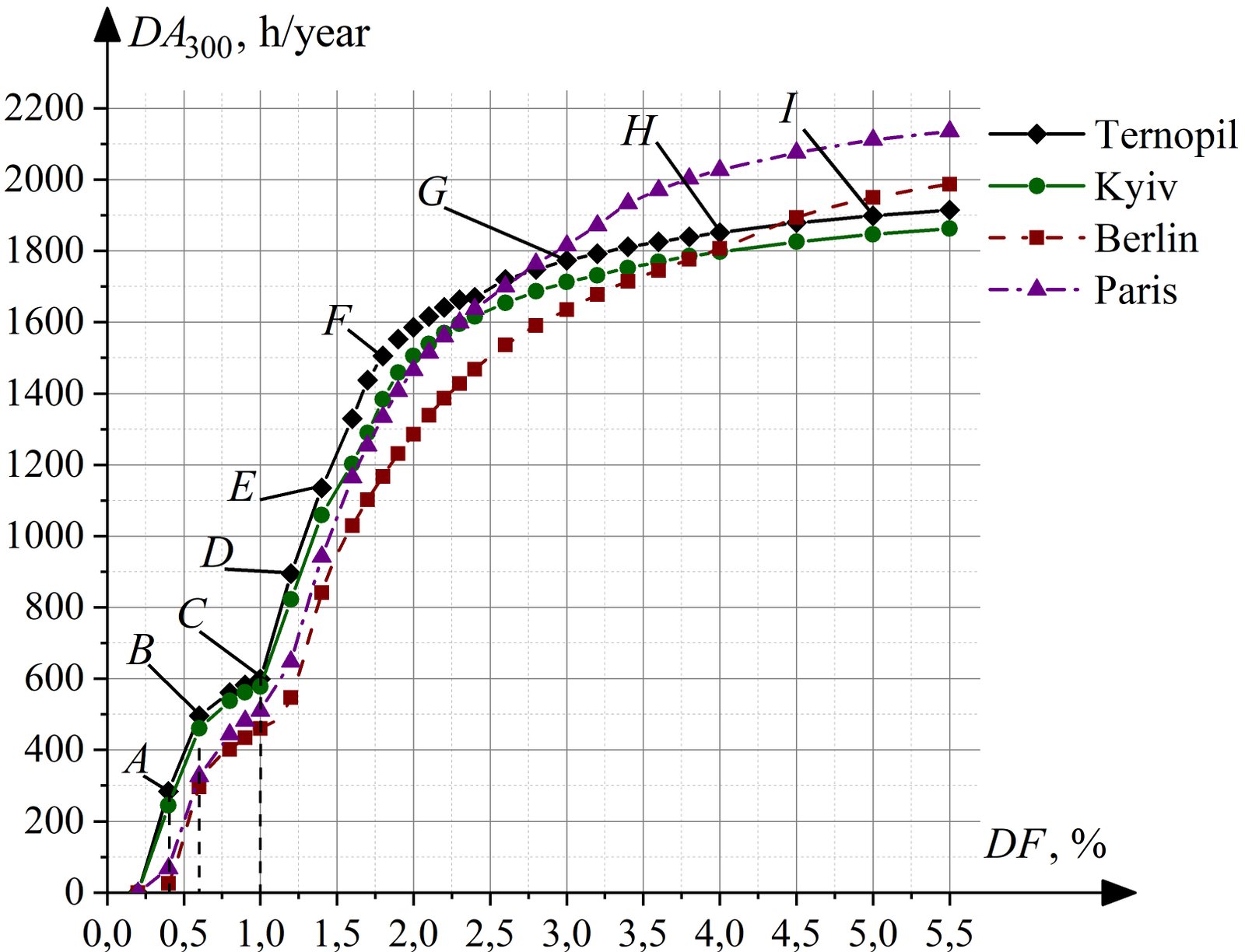

Fig. 4. Dependence of the room’s DA_{300} on the DF value, with a prescribed by regulations illumination value of 300 lx for four cities.
As can be seen, from the Fig. 4, for Ternopil city, when DF value changes from 0.4% (Fig. 4, p. A) to 0.6% (Fig. 4 p. B) and from 1.2% (Fig. 4, p. D) to 1.4% (Fig. 4, p. E) there is an abrupt change in DA_{300}. That is, in these areas, an increase in DF by 0.2% leads to a significant increase in energy saving for artificial lighting. In general, with an increase in DF value by 1%, we obtain the following difference in DA_{300}: when changing from 0% to 1% (Fig. 4, p. C) – 599.00 hours; from 1% (Fig. 4 p. C) to 2% (Fig. 4, p. F) – 986.58 hours; from 2% (Fig. 4, p. F) to 3% (Fig. 4, p. G) – 187.92 hours; from 3% (Fig. 4, p. G) to 4% (Fig. 4, p. H) – 77.52 hours; from 4% (Fig. 4, p. H) to 5% (Fig. 4, p. I) – 46.98 hours. Whereas the difference between 0.4-0.6% is 211.41 hours and between 1.2-1.4% – 239.60 hours. Based on the obtained results, it can be argued that when you change certain DF values (Fig. 4, p. A and p. D) by 0.2% (Fig. 4, p. B and p. E), you can achieve the same effect as when the other (Fig. 4, p. F and p. G) change by 1% (Fig. 4, p. F and p. H).
If we compare the graphs of the dependence of DA_{300} and DA_{500} on DF value (Fig. 4 and Fig. 5), then we will see the difference in values, but similar in form of dependence. It should also be noted that despite the fact that according to the value of prescribed by regulations illumination for DA_{500}, it is expected to be 1.67 times greater than DA_{300}, the values of DA will differ, when DF is 1% (Fig. 4, p. C) and Fig. 5, p. B) – 17.25%, 2% (Fig. 4, p. F and Fig. 5, p. E) – 43.56%, 3% (Fig. 4, p. G and Fig. 5, p. F) – 15.10%, 4% (Fig. 4, p. H and Fig. 5, p. G) – 9.01%, 5% (Fig. 4, p. I and Fig. 5, p. H) – 6.56%.
Figure 5

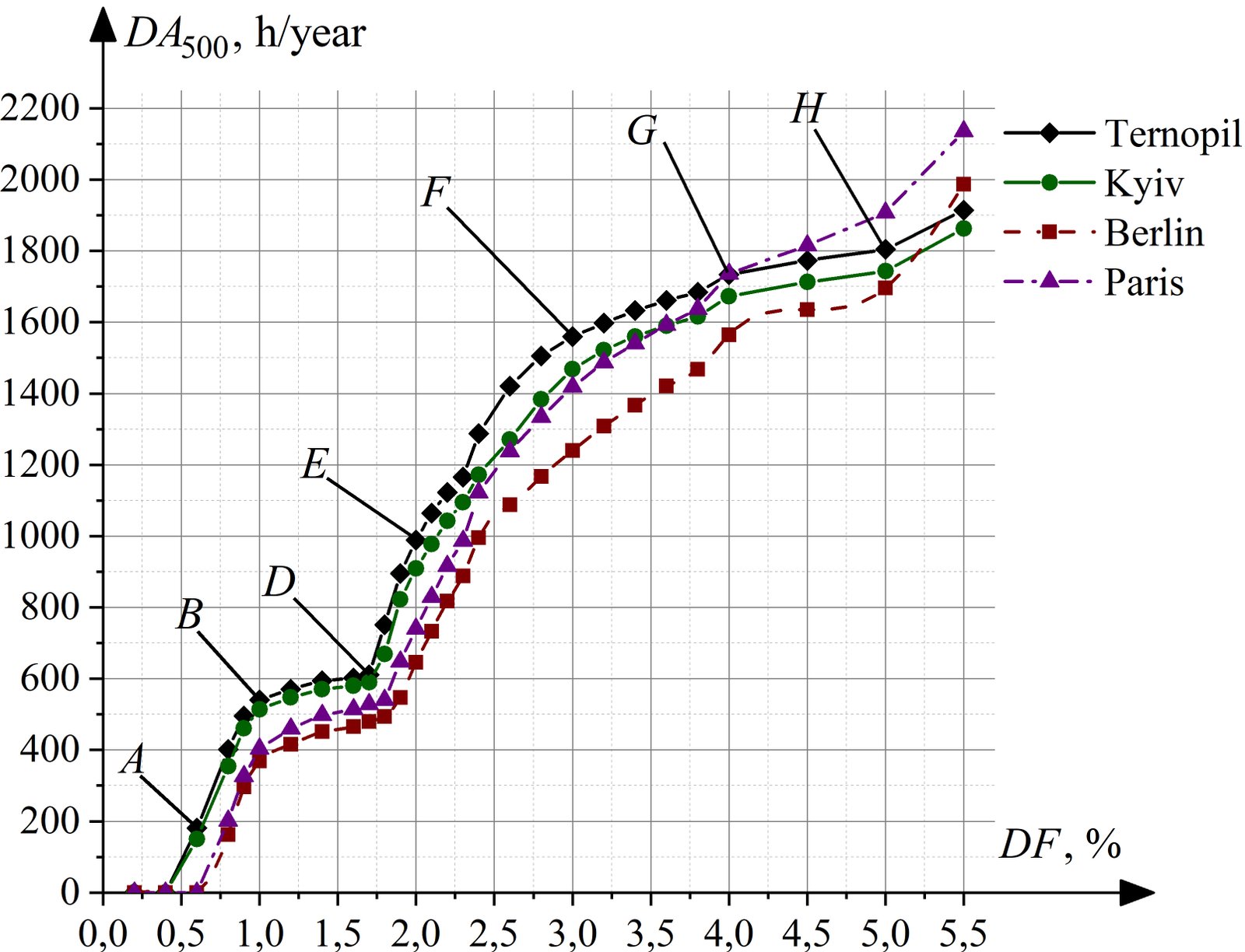

Fig. 5. Dependence of the room’s DA_{500} on the DF value, with a prescribed by regulations illumination value of 500 lx for four cities.

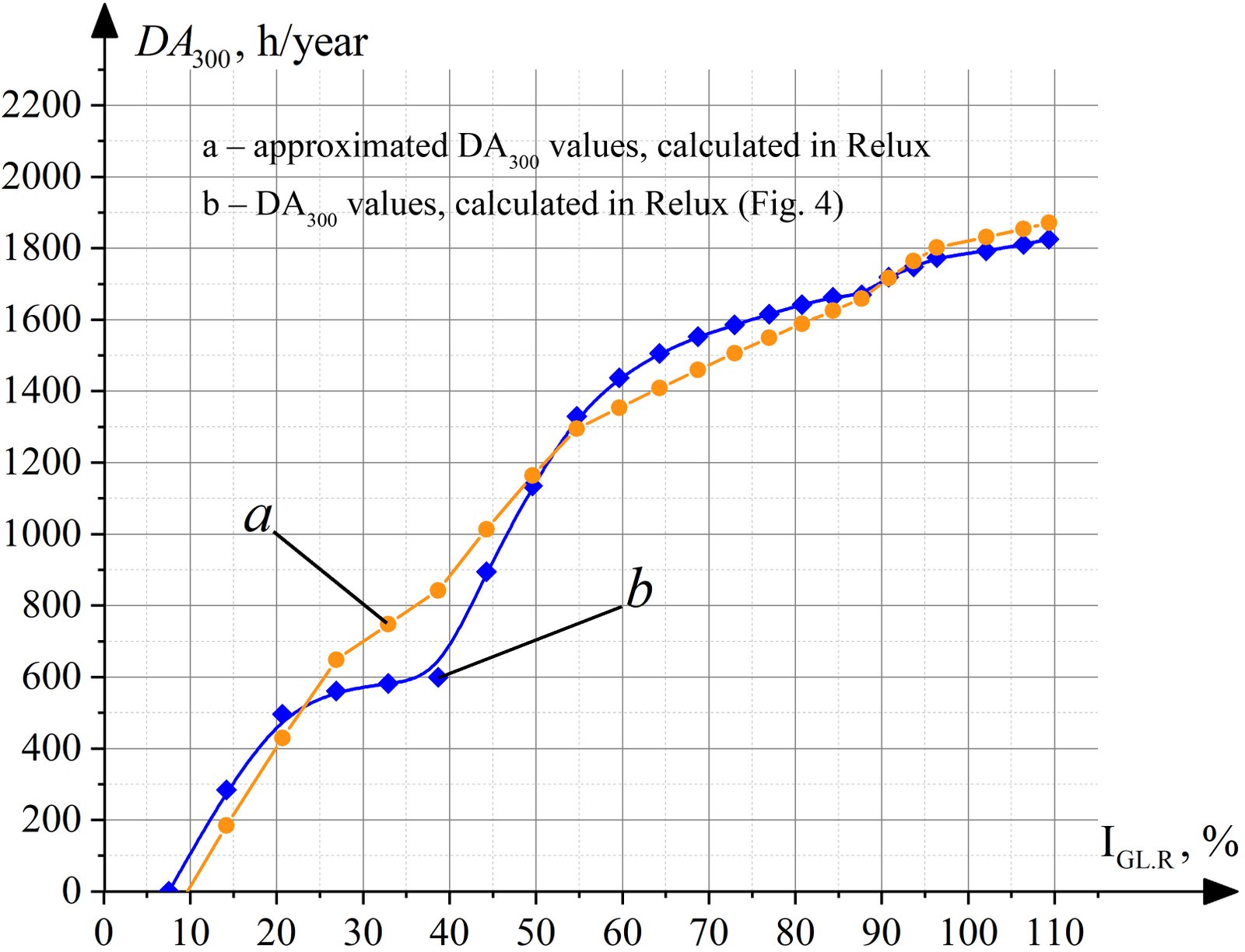

To establish the analytical dependence of DA_{300} on the size of the room and the area of TSBE, we construct the graphic dependences of DA_{300} on CRGI (Fig. 6), for this we use the data obtained in determining the dependence of DA_{300} on DF value in RP (Fig. 4). Data are given for Ternopil city, Ukraine.
As a result of approximating the obtained point data (Fig. 6 (a)) by the least squares method, Eq. (12), was received, this helped determine the value of DA_{300} for arbitrary values of CRGI for Ternopil city. The size of room and TSBE area, with a standard deviation of 82.6 and determination coefficient of 0.979 is shown in (Fig. 6 (b)). Approximation was carried out by the method of least squares, using Advanced Grapher (v. 2.2).
For the Kyiv city, the values of DA_{300} with a standard deviation of 71.22 and determination coefficient of 0.983 is determined by Eq. (13)
For the Berlin city, the values of DA_{300} with a standard deviation of 67.66 and determination coefficient of 0.987 is determined by Eq. (14)
For the Paris city, the values of DA_{300} with a standard deviation of 76.73 and determination coefficient of 0.987 is determined by Eq. (15)
Let’s consider an example on how to determine the minimum parameters of TSBE, at which we can get energy savings for artificial lighting. Study is carried out for the room with dimensions (width×depth×height): 6×4×3 m. From Eq. (2), CRGI values were calculated, which corresponds to the required DF value.
The selected double-glazed window (see Fig. 2), according to the manufacturer, has the SRRPC of 0.68 rel. units and profile thickness 0.073 m, for blind TSBE. For DF value 0.6%, with SRRPC 0.68, CRGI is:
Based on the obtained DF value at RP, the minimum glazing area value, is determined by Eq. (4), and is:
Since, according to [31,48], for rooms of various sizes, the dependence of DF value on the various sizes TSBE proportions is not synchronous, for each specific case it is necessary to choose the best option for the proportions of TSBE. Therefore, to simplify the calculations, the TSBE coordination index was taken as 1 (i_{C.TSBE} = 1).
To obtain a DF value equal 0.6% with SRRPC equal 0.68, with i_{C.TSBE} = 1, in accordance with Eq. (5) and Eq. (6), the TSBE glazing ought to have the following dimensions: h_{GL} = 1.59 m, l_{GL} = 1.59 m.
To determine TSBE area, it is necessary to determine TSBE profile and foam filling width. According to [47], the profile width for the blind TSBE (see Fig. 2) is 0.073 m.
Based on the size of the glazing and the thickness of the profile according to Eq. (7) and Eq. (8), TSBE height and width have the following dimensions: h_{TSBE} = 1.736 m, l_{TSBE} = 1.736 m.
With TSBE width 1.736 m, according to Eq. (9), the foam filling width is:
The TSBE opaque part width, according to Eq. (11), is:
To ensure DF value of 0.6%, according to Eq. (10), the TSBE area should be:
To determine the TSBE area at which DF value will be ensured, in which the maximum TSBE efficiency is achieved, it is necessary to calculate the area of rooms with various sizes. To do this, we carry out the above calculations for rooms with dimensions (w × d): 4×2 m, 4×3 m, 4×4 m, 4×5 m, 5×3 m, 5×4 m, 5×5 m, 6×3 m, 6×4 m and 6×5 m. The calculation results are given in Table 6.
The specific daylight autonomy is determined by Eq. (21)
Table 6

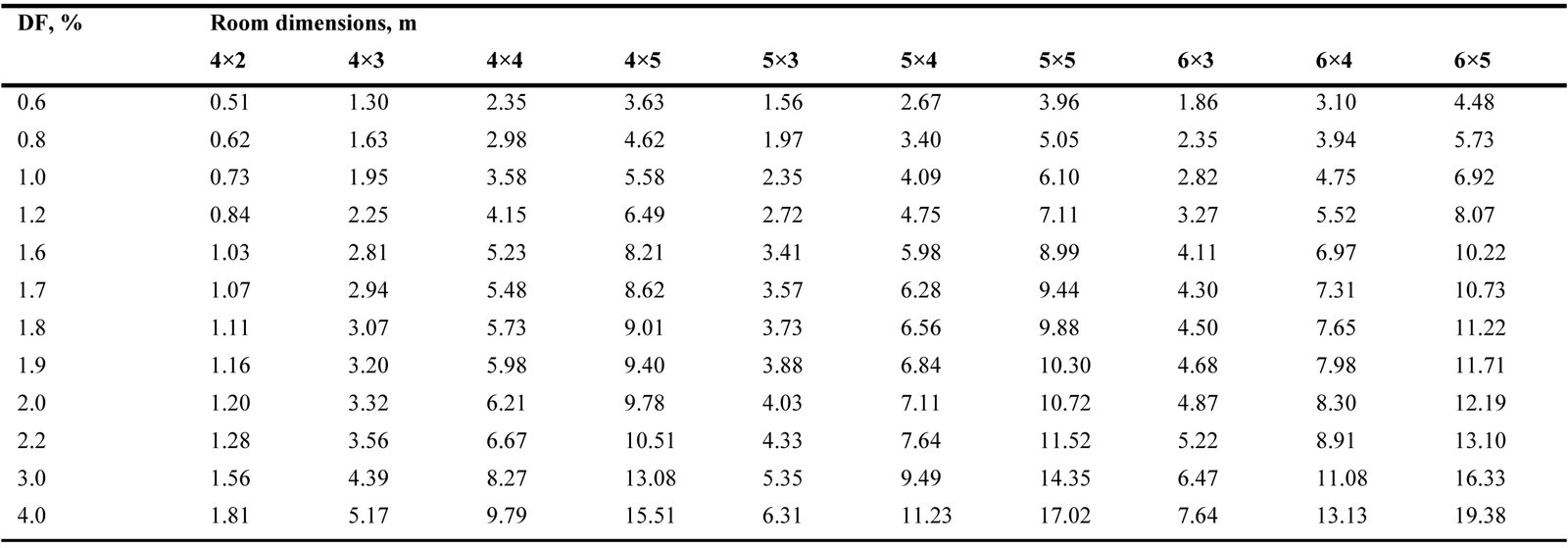

Table 6. TSBE area, at which the required DF value is provided, for rooms of various sizes, for the Ternopil city, m^{2}.
As a result of the calculation, data were obtained regarding the efficiency of TSBE area use for the Ternopil city, which are presented in Fig. 7.
Figure 7

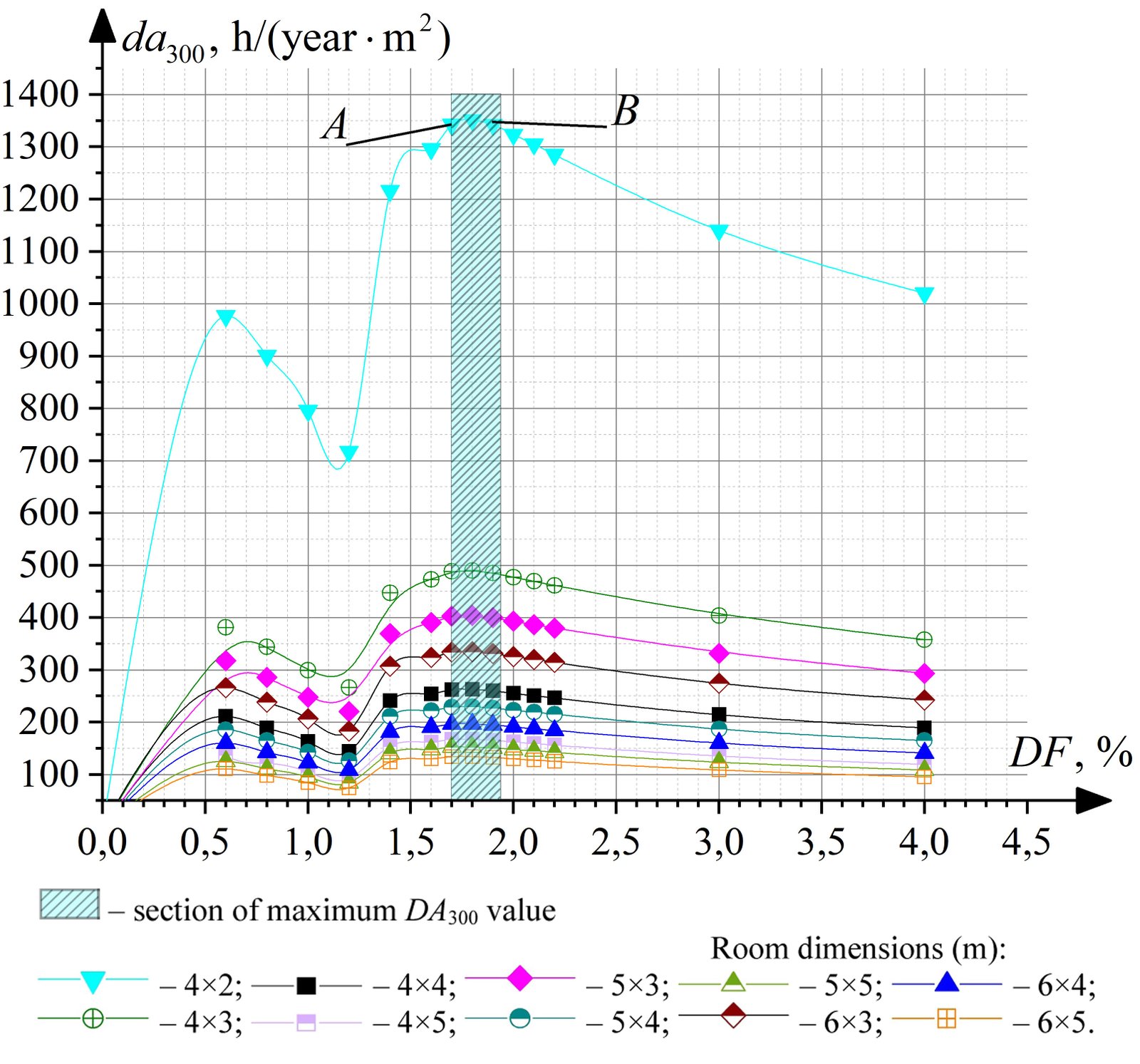

Fig. 7. Dependence of the specific DA_{300} on the DF value, for rooms of various sizes, with a prescribed by regulations illumination value of 300 lx, located in the Ternopil city.
As can be seen from Fig. 7, the maximum specific DA_{300} for providing daylighting, with a prescribed by regulations illumination of 300 lx (from 1342.82 h/(year×m^{2}) to 1351.52 h/(year×m^{2})) is observed with the DF value of 1.7% (Fig. 7, p. A) up to 1.9% (Fig. 7, p. B), maxima – at 1.8%.
According to Fig. 8 at the illumination of 500 lx, the maximum specific DA_{500} (from 997.71 h/(year×m^{2})) to 1009.35 h/(year×m^{2})) is observed at DF value of 2.6% (Fig. 8, p. A) up to 3.0% (Fig. 8, p. B), maxima – at 2.8%.
Figure 8

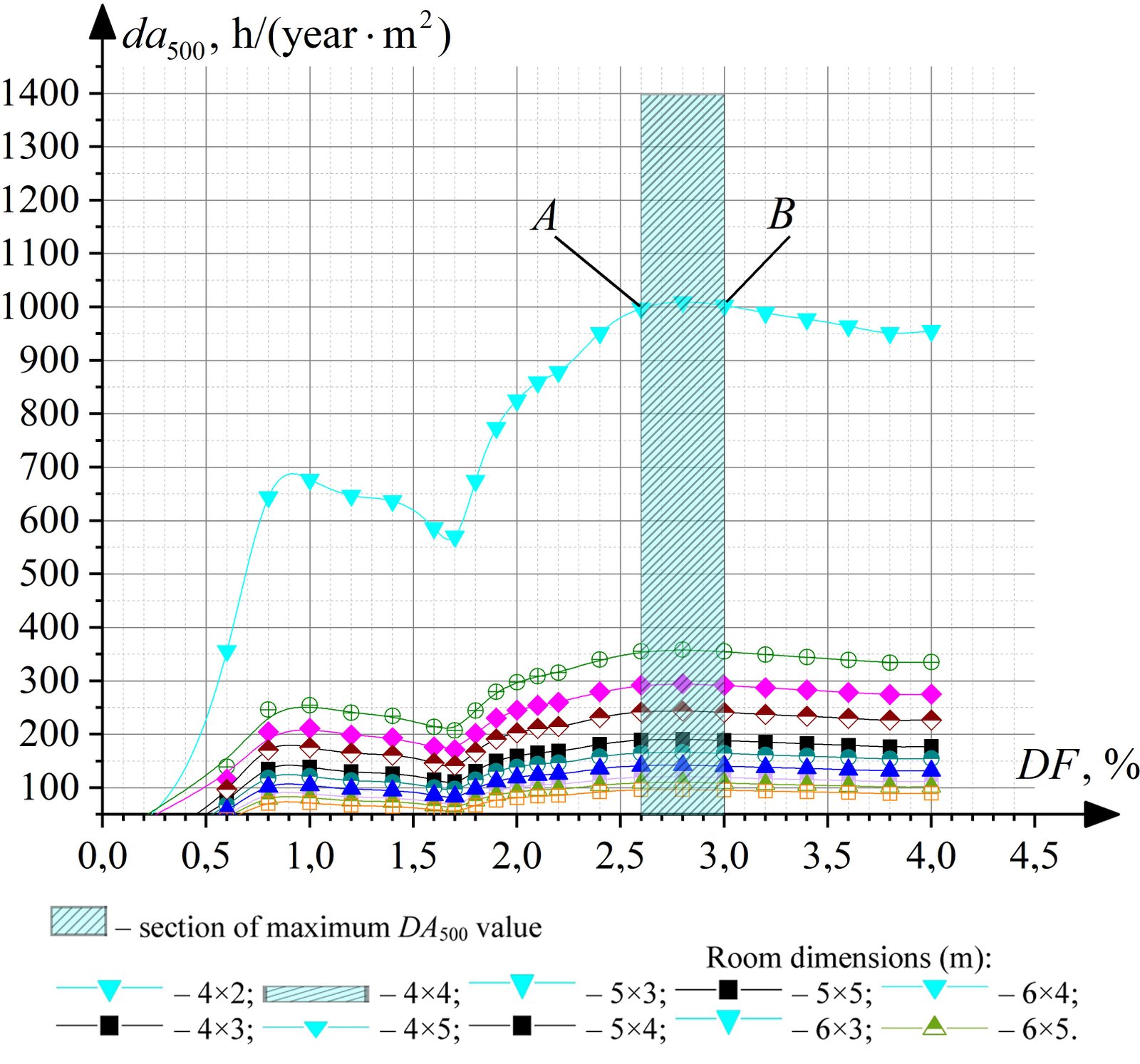

Fig. 8. The dependence of the specific DA_{500} on the DF value, for rooms of various sizes, with a prescribed by regulations illumination value of 500 lx, located in the Ternopil city.
This research is dedicated to the determination of the analytical dependences of daylight autonomy on DF value and the TSBE area in rooms of various sizes. The feasibility of the study is due to the need to reduce the energy consumption in office buildings. It can be achieved by ensuring maximum specific efficiency of TSBE usage.
In studies [3,12,16,18,19,29,29,39,40,49-56], the results of TSBE energy efficiency, using WWR and WFR to determine the parameters of its maximum energy efficiency were presented. Articles [18,19] present the results of modeling energy expenditures for 108 cases. There is also presented the energy efficiency indicator EDR. However, these results were obtained using computer simulation for specific cases, which makes their widespread use impossible. In order to be able to present the results of this study in the form of analytical expressions, there was a need to study the dependence of the energy efficiency of daylighting (which is expressed in its autonomy). Therefore, in the framework of this study, a research was conducted on the dependence of DA_{3}_{00} and DA_{500 }on the DF value for several cities.
It is proved that the efficiency of using the TSBE area to provide daylight illumination of 300 lx in an office building is maxima with a DF value of 1.8%. For 500 lx – with 2.8% DF value. It was found that to assess the TSBE effectiveness for rooms lighting, it is advisable to use the composite room glazing index (CRGI). When using the window to floor ratio (WFR) or window to wall ratio (WWR), changing the size of the rooms leads to a significant increase in the calculation error, – 3.24 times for WFR and 8.15 times for WWR. At the same time, when using the CRGI, the error does not exceed 26.1%, but it also has certain limitations. If the room width is double the depth (l_{R} ≥ 2 ∙ d_{R}), the error can increase up to 68%.
It should be noted that, depending on the location of the investigated object, the values of the maximum specific daylight autonomy may differ from those presented in this study. This is due to the changing climatic condition during the year, in addition to changing the trajectory of the incidence of sunlight, cloudiness also changes quite dynamically. Therefore, such calculations must be carried out separately for each specific case.
Since the daylight autonomy takes into account the level of illumination above the prescribed by regulation values, for a total assessment of the potential for use daylighting, it is necessary to take into account the limiting values of illumination on the working surface at 3000 lx [61]. This is necessary in order to take into account glare and the need to use shading devices. That’s why in further studies it is necessary to combine the daylight autonomy with the useful daylight illuminance (UDI) metric [62].
The research aimed at establishing the DF values, for which maximum efficient use of daylighting was ensured in office rooms. As a result of the research, it was established, that irrespective of the size of the rooms, the maximum specific daylight autonomy (at illumination of 300 lx), with lateral daylight, occurs when the daylight factor is in the range of 1.7% to 1.9%. Maxima – at 1.8%. At illumination of 500 lx, the maximum specific daylight autonomy will occur at a daylight factor range of 2.6% to 3.0%. Maxima – at 2.8%.
When DF values are in the range of 0.8% to 1.2% at DA_{300} and 1.2% to 1.7% at DA_{500}, there is a sharp decline in the efficiency of daylight usage. As a result of the approximation of point values, an expression is obtained for determining the daylight autonomy, for a prescribed regulations illumination value of 300 lx, for rooms of various sizes with different TSBE areas.
The parameters of translucent structures of building envelope and DF are determined, at which the maximum efficiency of daylight usage in office rooms of various sizes is ensured. Also, it was found, that evaluating the efficiency of daylight usage for rooms of various sizes is impossible to perform using WFR and WWR. It is proved that the using of the composite room glazing index makes it possible to adequately assess the energy efficiency of daylight usage in rooms of various sizes, except when l_{R} ≥ 2∙d_{R}.
In practice, the results of this study can be used in the design of premises by ensuring maximum efficiency of daylight usage and saving energy by reducing the duration of the artificial lighting consumption. Another area where the results can be applied is the development of regulatory documents for each region, by determining the maximum specific daylight autonomy for them. It help will reduce the total energy consumption and increase the total energy efficiency of office buildings.
This paper is based on the thesis from Burmaka and Tarasenko [63].
The authors have contributed equally.
The authors report no conflicts of interest. The authors alone are responsible for the content and writing of this article.
